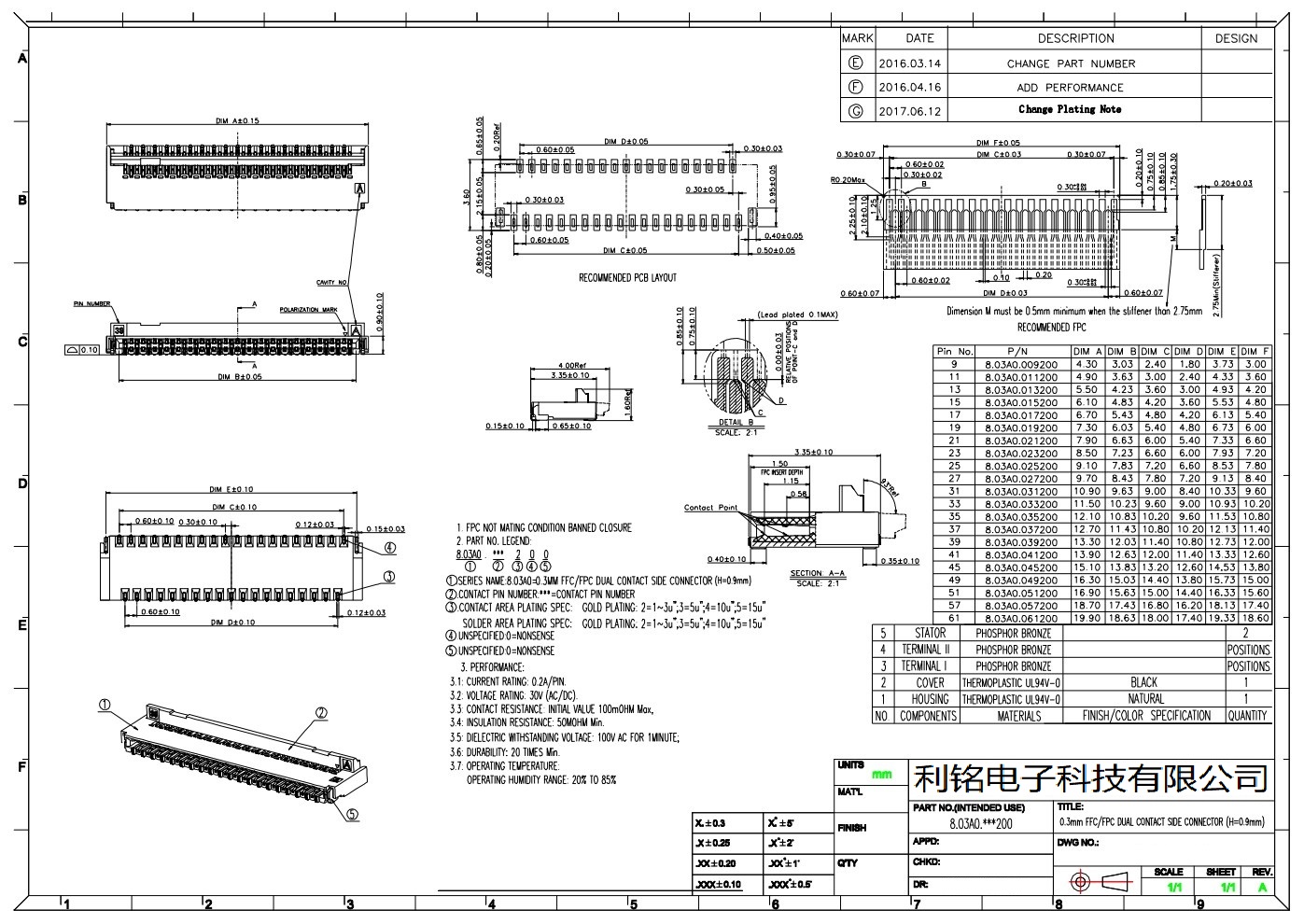

FPC-003-104 前插后掀盖H1
分类: FPC间距0.3mm  发布时间: 2022-01-20 17:02

FPC-003-104 前插后掀盖H1
FPC-003-104 前插后掀盖H1

FPC连接器技术参数

FPC软排线连接器间距分为0.3mm  0.5mm  1.0mm

FPC插座PIN数:4-60

电镀:T=镀锡

装置风格有:抽屉式,翻盖式、 抽拉式、拉拔式、 掀盖式、前掀盖式、前压、后压、下接、上接SMT

工作电压:30V AC

额定电流:0.2A DC

工作温度: -25~+85(Including terminal temperature rise)

耐压:250Vrms

触点材料: 磷青铜

绝缘材料:LCP

适用的FPC厚度:T=0.3±0.03mm

包装:卷装连接器

品牌:利铭科技 LMSWITCH



1.窄间距,超薄型设计,以满足产品短小轻薄的设计要求。

2.与配套的FPC之间的保持力相当的优秀。

3.采用双边出PIN,单边PIN脚间距为0.6mm,更便于操作。

4.对连接器塑料本体正下方区域的电路设计无影响。

5.双边PIN脚长度达0.65mm,可确保与PCB之间有足够的结合力及操作的便利性。

6.符合ROHS指令及HF(无卤素)要求。

7.主要应用于MPDSCPDAGPSDPF等消费性电子产品。

8.具体应用于:LCMCCMWI-FIBT等模块与MB之间的连接或PCBPCB之间的连接。



FPC connector technical parameters

FPC flexible cable connector spacing is divided into 0.3mm 0.5mm 1.0mm

FPC socket PIN number: 4-60

Plating: T = Tin plating

Device styles are: drawer type, clamshell type, pull-out type, pull-out type, flip-up type, front flip-up type, front pressure, rear pressure, lower connection, upper connection SMT type

Working voltage: 30V AC

Rated current: 0.2A DC

Working temperature: -25~+85(Including terminal temperature rise)

Withstand voltage: 250Vrms

Contact Material: Phosphor Bronze

Insulation material: LCP

Applicable FPC thickness: T=0.3±0.03mm

Packaging: Reel Connector

Brand: Liming Technology  LMSWITCH



1. Narrow spacing, ultra-thin design to meet the design requirements of short and thin products.

2. The retention force with the matching FPC is quite excellent.

3. It adopts bilateral output PIN, and the unilateral PIN pin spacing is 0.6mm, which is more convenient to operate.

4. Has no effect on the circuit design in the area directly below the plastic body of the connector.

5. The length of the bilateral PIN pins is up to 0.65mm, which can ensure sufficient bonding force with the PCB and the convenience of operation.

6. Comply with ROHS directive and HF (Halogen Free) requirements.

7. Mainly used in MP, DSC, PDA, GPS, DPF and other consumer electronic products.

8. Specifically used: the connection between LCM, CCM, WI-FI, BT and other modules and the MB or the connection between the PCB and the PCB.
